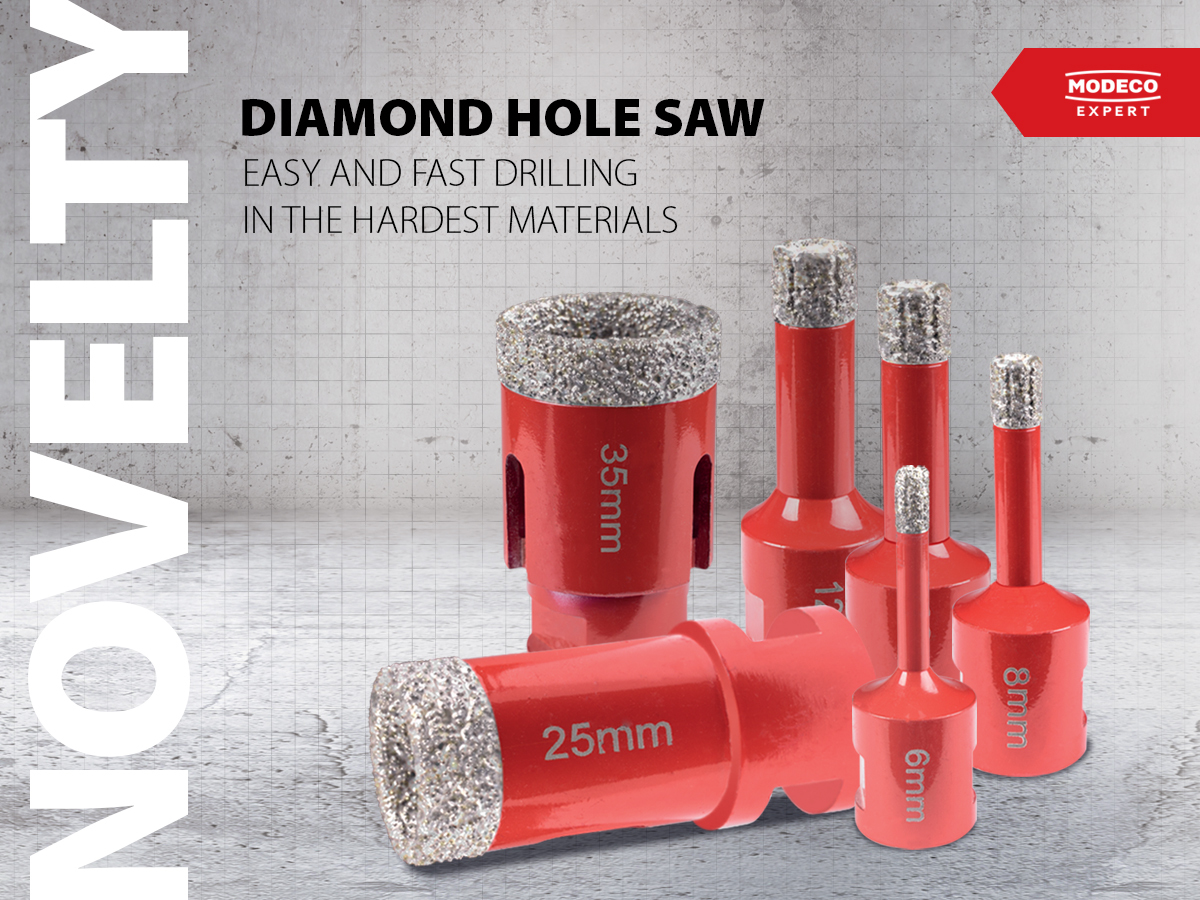

Diamond hole saws – easy and quick drilling in the hardest materials

Diamond hole saws – easy and quick drilling in the hardest materials

Most finishing materials such as ceramics, stoneware, terracotta, marble and granite used during tiling work require the use of reliable tools for drilling holes. Therefore, Modeco Expert, understanding the customers’ needs and the specificity of the substrate, expanded its offer with new diamond hole saws. The holesaws made in the VACCUM BRAZED technology enable dry drilling without the use of water even at very high speeds. An additional advantage is the wide range of diameters available – 6, 8, 10, 12, 25 and 38 mm, as well as 2 types of holders – HEX and M14 thread.



Discover the features and benefits of Modeco Expert diamond hole saws:

  • DURABILITY, DURABILITY AND HIGH QUALITY: thanks to the use of Vacuum Brazed technology, i.e. vacuum soldering, in which synthetic diamonds are connected to the body using brass-based solder.
  • DRY DRILLING – thanks to wax placed inside the holesaw, which during drilling melts and cools the working part of the diamonds.
  • VERSATILITY OF USE thanks to the use of two types of tool holders, the hole saws fit many power tools. Hex handle allows you to work with cordless drills, drills and hammer drills (without impact). In contrast, the M14 thread fits angle grinders.
  • PRECISION POINT DRILLING thanks to which the hole has smooth edges without cracks and breaks.
  • HIGH DRILLING PERFORMANCE even in very hard materials, thanks to the durable and clean connection of diamonds with the tool body in a vacuum that increases resistance to high temperatures and friction.
  • MAX 12,000 RPM allows use with most power tools.
  • BODY MADE OF DURABLE STEEL does not crack when drilling even with small diameters and guarantees a long service life.
  • GUIDE WITH SUCTION CUP enables drilling without the need for a pilot drill and prevents the drill from slipping on the material.



INFORMATION ON AVAILABLE PRODUCTS



DIAMOND HOLE SAWS
INDEX HANDLE Ø DIAMETER [MM] LENGTH [MM] MAX. RPM COOLING METHOD DIAMOND COATING HIGH [MM] QUANTITY INNER BOX[PCS]



QUANTITY OUTER BOX[PCS]
MN-76-206















M14

6 65















12000













WAX







































10

10 100
MN-76-208 8 65 10 100
MN-76-210 10 65 10 100
MN-76-212 12 65 10 100
MN-76-225 25 60 HOLES IN THE BODY 10 100
MN-75-235 35 60 5 50
MN-76-306









HEX

6 70









3200











WAX

20 200
MN-76-308 8 80 20 200
MN-76-310 10 80 20 200
MN-76-312 12 80 20 200
MN-76-298 4-75 5 50
